A complete single-dose packaging platform, from material supply, metering, bag forming, to inspection, cartoning and final palletizing.
Different materials use different filling methods, optional screws, metering boxes, and metering pumps;
Different filling methods can use independent weighing units for inspection, rejection and feedback to automatically adjust the center value;
Different secondary packaging specifications determine different ways of sorting and counting;
Different secondary packaging forms determine different logistics forms and paths;
Built from JOYEA's proven packaging platforms, with DOT managing equipment, controls, data, safety and acceptance interfaces.
Select auger, volumetric, pump or counting modules from product behaviour, target dose and cleanability.
Uniform control of multi-column film placing, slitting, and bag size.
Synchronise dosing with vertical and cross seals while protecting the seal area from product contamination.
Printing and visual inspection and checking weight of each lane can reject unqualified stick, and feedback the value to the dosing system for adjustment.

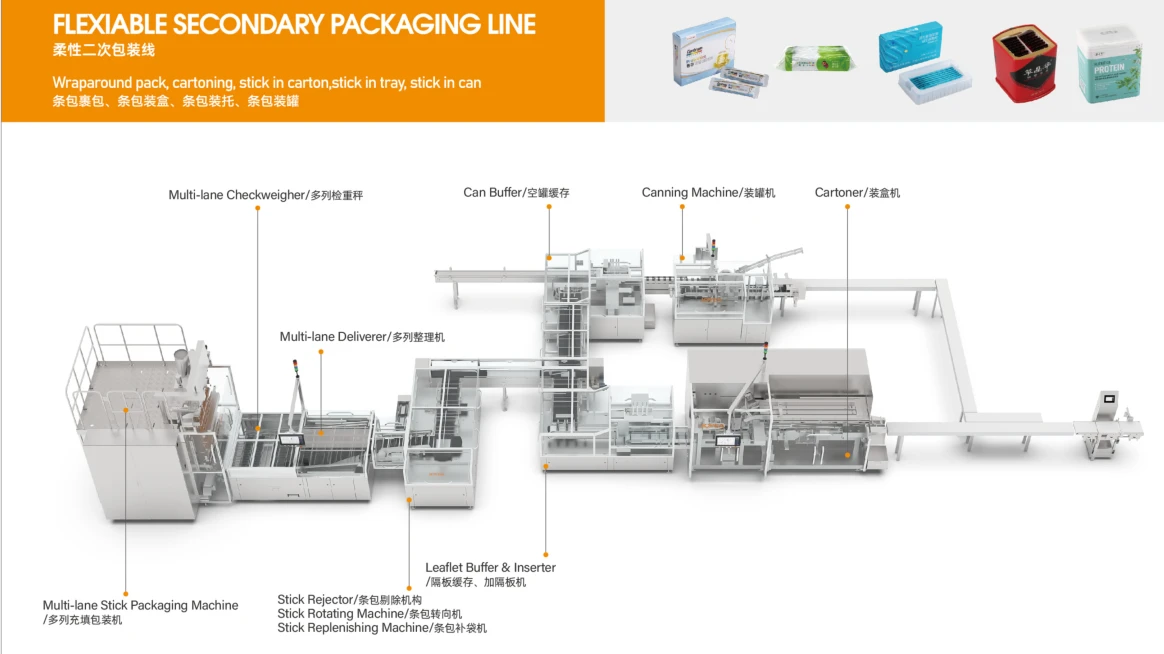

Count and collate accepted sticks, repleshment after rejection, then load cartons, cans or pouches.
Balance downstream buffers, case packing and palletising under one line-control philosophy.
The equipment module of the production line is combined according to the product, packaging form, target production capacity and quality control requirements, and the final configuration is subject to material testing, URS and project confirmation documents.

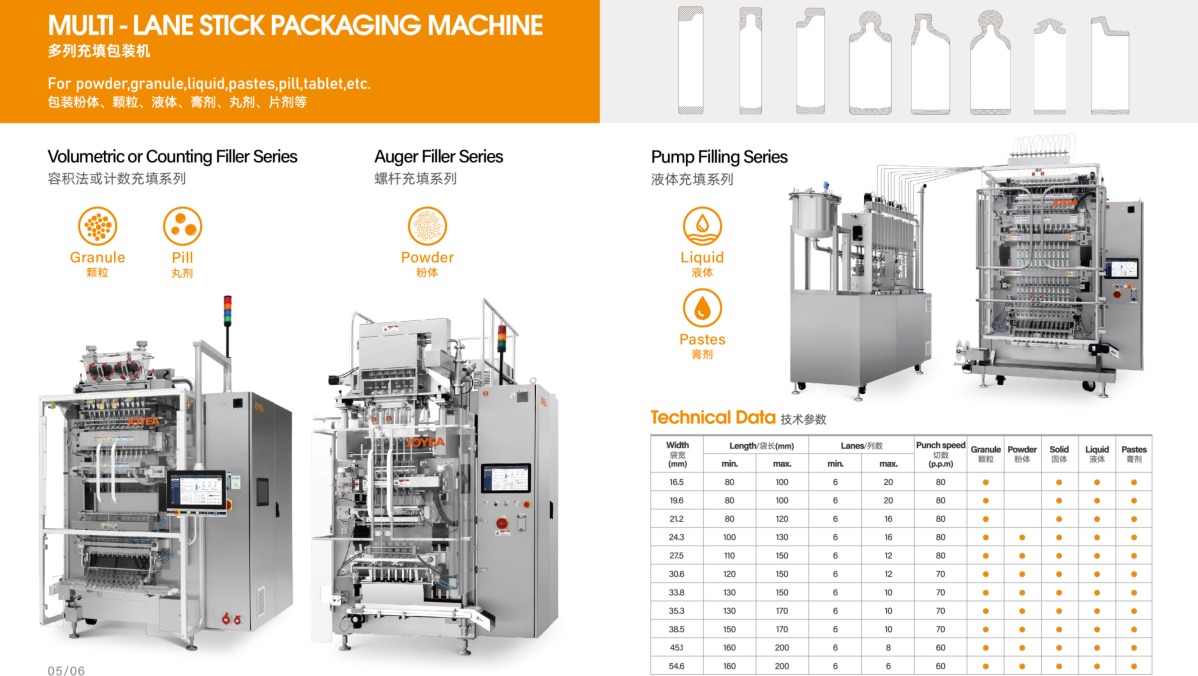

According to the optional volumetric, counting, auger or pump-type measurement of particles, pellets, powder, liquid or paste, the sachet forming, filling and sealing are completed on the same multi-lane platform.
The typical configuration is 6–20 lane; the actual speed, bag width and dosing range are confirmed by the material test and project specification.Technical source: JOYEA

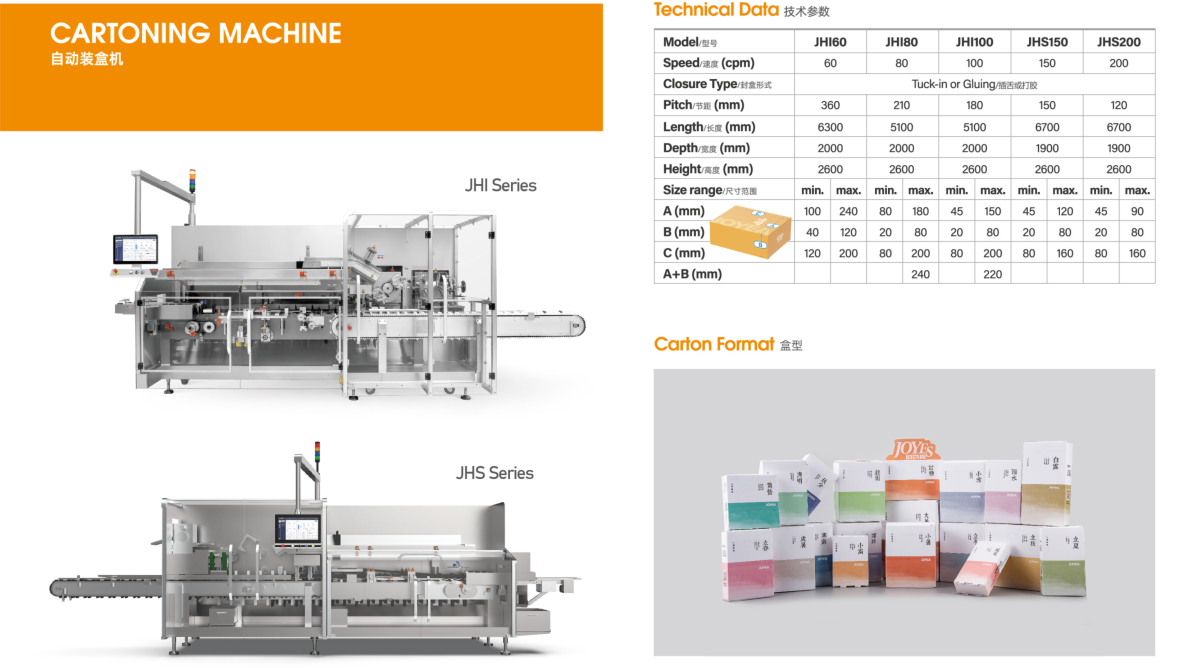

JHI series can finish carton opening, loading, folding or hot melt adhesive; JHS series adopts dual channel, dual feed and double pusher structure to improve the output of the same term.
Optional coding, visual inspection, online folding manual, card and multi-layer boxing; the final speed is confirmed according to the product, paper cassette and feed method.Technical source: JOYEA

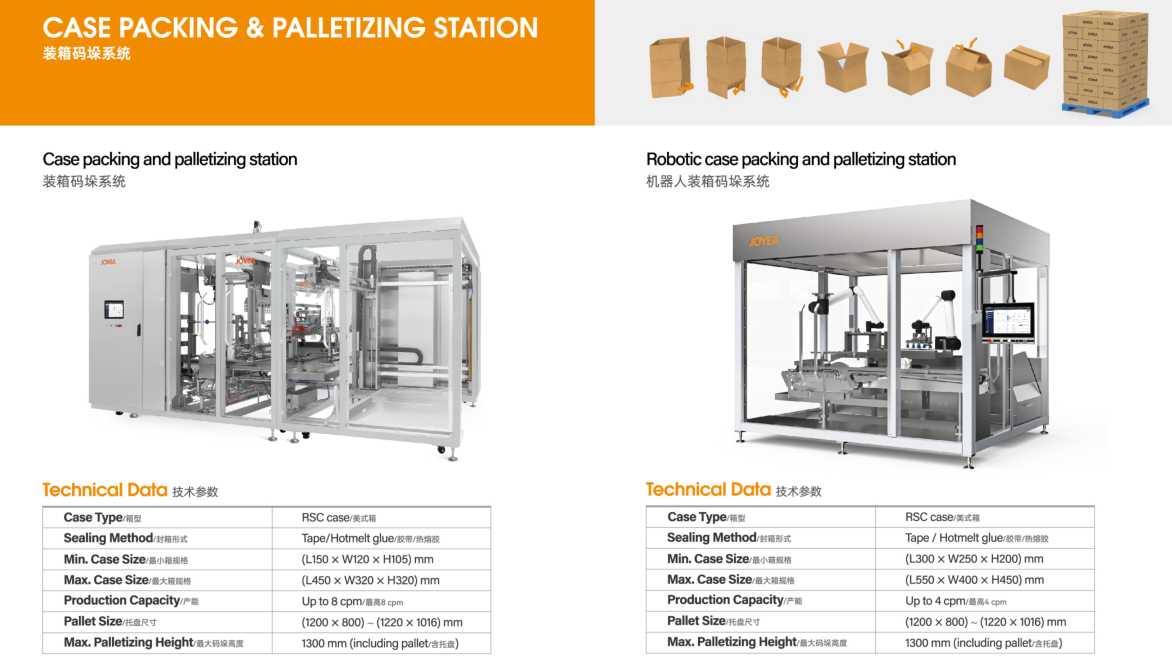

Combining product finishing, grabbing, unpacking, packing, sealing and pallet palletizing into the end of line workstation, you can choose a mechanical or robot scheme according to the packaging form.
Layout, gripping tools, carton forms and beats are configured according to the upstream output and palletizing mode.Technical source: JOYEA
